How to Upscale Video in Sony VEGAS Pro: A Complete Guide
By Daniel Walker
Bringing low-resolution or legacy footage into a modern high-definition timeline can be a frustrating experience. Whether you are dealing with old 1080p home videos, archived SD content, or classic screen recordings, dropping them directly into a 4K project often results in a blurry, pixelated mess.
If you use Sony VEGAS Pro (now MAGIX VEGAS), you have access to several built-in features to handle scaling. However, depending on which version of VEGAS you own, the process varies wildly-from basic pixel stretching to advanced machine learning.
In this comprehensive guide, we will walk you through the three primary methods to upscale video in Sony VEGAS Pro, highlight their limitations, and introduce an automated, crash-free AI alternative that can streamline your editing workflow.
Method 1: The Native VEGAS Way
If you are using an older version of VEGAS Pro (such as VEGAS 14 through 17) or have a lower-spec computer that cannot handle heavy AI workloads, this traditional method is your starting point. It relies on internal interpolation to stretch the video to fit your project size.

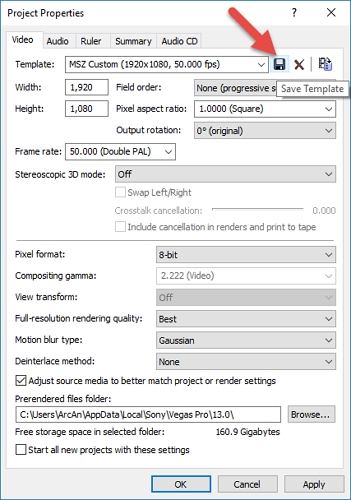

Step 1: Set Up Your Project for High Resolution
Before importing your low-resolution clip, you must configure VEGAS to target your final desired output resolution.
- Go to the main menu and click File > Properties.
- In the Project Properties window, select the Video tab.
- Choose a preset that matches your ultimate goal from the Template dropdown.
For example, if you want to upscale to 4K, select Ultra HD 3840x2160. - Set the Full-resolution rendering quality dropdown to Best to ensure maximum output fidelity.
- (Optional) If you are working with old camcorder footage, set the Deinterlace method to Smart adaptive (GPU only) to clean up interlaced line artifacts.
- Click Apply and then OK.
Step 2: Import and Apply Resampling Switches
When you drag your low-res clip onto the timeline, VEGAS automatically stretches it to fit the 4K frame, causing a soft, muddy image. You can try to optimize the edge sharpness using internal switches:

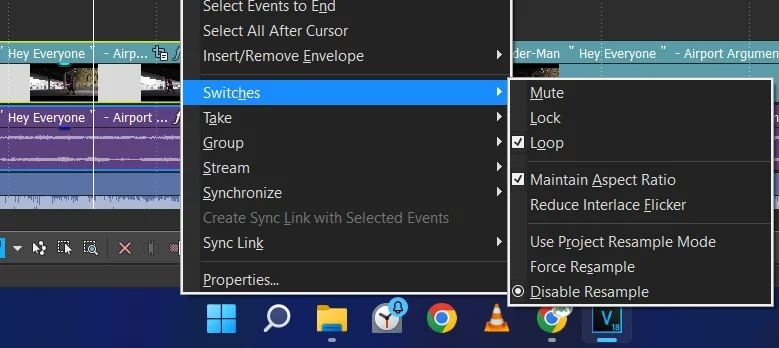

- Right-click the video event on your timeline.
- Hover over Switches in the context menu to reveal the resampling options.
- Select Disable Resample.
Why Disable Resample? By default, VEGAS uses "Smart Resample," which attempts to blend frames and smooth edges, often introducing ghosting or extra blurriness. Selecting Disable Resample forces VEGAS to simply stretch the original pixels without artificial smoothing. While it preserves original detail, it may look blocky or jagged on a large 4K display.
Pros & Cons of the Native Resampling Method
Advantages:
- Completely built into every version of VEGAS Pro.
- Requires minimal rendering power; no timeline lag or complex setups.
- Works flawlessly even on budget laptops without a powerful dedicated GPU.
Limitations:
- Does not generate new details; it simply stretches existing pixels, resulting in blurry or heavily pixelated videos.
- "Smart Resample" often causes distracting ghosting or blending motion blur during fast movements.
Method 2: How to Upscale Video in VEGAS Pro 18+ with Built-in AI Upscale
If you are running a modern version of VEGAS Pro, the software includes a dedicated AI Upscale plugin powered by the MAGIX Deep Learning Models engine. This tool uses machine learning to generate new pixels rather than just stretching old ones.
Step 1: Install the Deep Learning Models
The AI Upscale tool will not work without its underlying data architecture. If you get a missing model error, you must download and install the VEGAS Deep Learning Models bundle directly from your MAGIX account download page.
Step 2: Apply AI Upscale as a Media FX (Crucial Step)
To unlock the full potential of this tool, you must apply it to the source file in your media bin, not to the clip on the timeline.
- Open the Project Media window.
- Right-click your low-resolution video and select Media FX (Applying it here gives you manual control over the scaling factor).

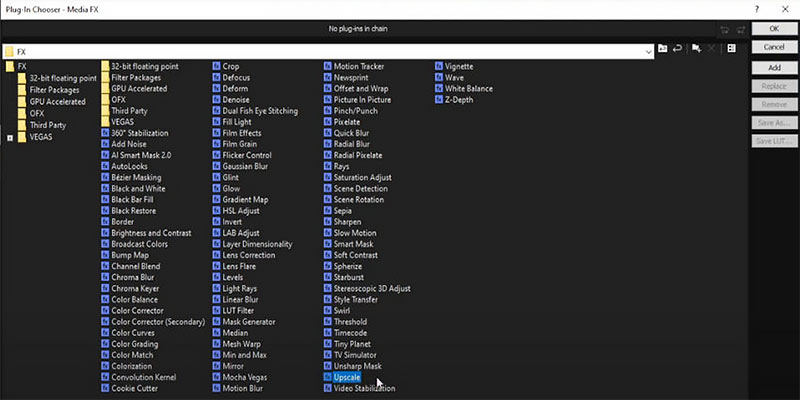

- In the Plug-In Chooser, find and select Upscale, then click Add and OK.

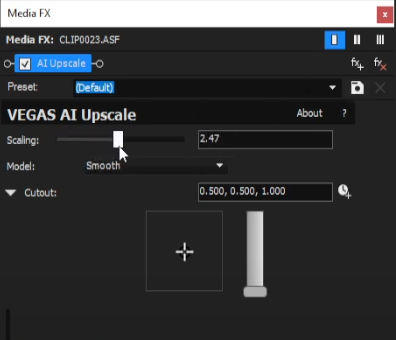

Step 3: Configure Your AI Settings
Once the Media FX window opens, adjust the following parameters:
Scaling Slider: Drag the slider to set your magnification factor (up to 4x).
Model Selection: Choose the AI model that fits your footage profile:
- Sharp: Best for landscapes, text, and architectural lines (highly recommended).
- Smooth: Ideal for natural skin gradients and eliminating harsh edges.
- Denoise: Designed specifically to strip away vintage camera grain or sensor noise.
Quick Fix: Why Can't I Move the Scaling Bar?
If you add the Upscale effect directly to a clip on the timeline (as an Event FX), the scaling bar becomes greyed out. This happens because VEGAS automatically locks the scale to match whatever project resolution you set in Step 1. To manually choose your magnification multiplier, you must apply it as a Media FX in the media bin.
Pros & Cons of VEGAS Built-in AI Upscale
Advantages:
- Dramatically sharper than the native resampling method; intelligently fills in missing textures and lines.
- Offers targeted options (Sharp/Smooth/Denoise) to match different types of video content.
Limitations:
- Puts an immense burden on your hardware, leading to severe timeline lag and frequent software crashes.
- Requires hunting down and installing a separate, multi-gigabyte Deep Learning Models package from MAGIX.
- Forcing users into the "Media FX" menu just to unlock the scaling slider is highly counter-intuitive.
Common Problems When Upscaling Videos in Sony Vegas Pro
Many users are disappointed after exporting an upscaled video because the results don't look significantly better. Here are some common issues.
- Upscaled Video Still Looks Blurry: Increasing resolution doesn't create new visual information. If the original footage is soft or out of focus, the upscaled version will remain blurry.
- Pixelation After Rendering: Low bitrate settings can cause visible artifacts and pixelation during export.
- Noise Becomes More Visible: When a video is enlarged, image noise and grain are enlarged as well, making flaws more noticeable.
- Long Rendering Times: Rendering 4K footage requires substantial CPU and GPU resources, especially for longer projects.
The Ultimate Smart Alternative: Upscale Video with AI
While Sony Vegas Pro is excellent for video editing, its upscaling capabilities are still based on traditional scaling methods. If your goal is to truly improve video quality rather than simply increase resolution, HitPaw VikPea offers a more advanced solution. Powered by AI, VikPea analyzes every frame and intelligently reconstructs details that may be missing in low-resolution footage. Whether you're working with old home videos, compressed online clips, blurry recordings, or low-light footage, the software can enhance sharpness, reduce noise, improve facial details, and upscale videos to stunning 4K or even 8K quality. Many content creators, filmmakers, and video editors use VikPea as a companion tool alongside Sony Vegas Pro-editing their projects in Vegas and then enhancing the final export with AI to achieve cleaner, sharper, and more professional-looking results.
Key Features of HitPaw VikPea
- AI Upscaling to 4K and 8K: Increase video resolution while restoring textures and fine details instead of simply enlarging pixels.
- Multiple AI Enhancement Models: Choose from General Enhancement, Portrait, Animation, Denoise, Low-Light Enhancement, and AI Colorization models for different video types.
- AI Denoising and Artifact Removal: Remove video noise, grain, and compression artifacts for a cleaner and more professional appearance.
- Low-Light Video Enhancement: Brighten dark footage while preserving natural colors and reducing unwanted noise.
- Batch Processing: Enhance multiple videos simultaneously, saving time when working on large projects.
- Simple One-Click Workflow: Upload a video, select an AI model, preview the result, and export-all without complex editing knowledge.
Step-by-Step: The Seamless Vikpea Workflow
Using Vikpea alongside Sony VEGAS Pro is incredibly simple and saves hours of timeline rendering:
Step 1. Import:Launch Vikpea and drag your low-resolution video files directly into the Video Enhancer workspace.
Step 2. Select AI Model:Choose the specialized AI model tailored to your footage type (e.g., General Denoise, Face Restoration, or specialized animation models). Select your target resolution (such as 4K).
Step 3. Preview & Export:Click Preview to see a side-by-side comparison. Once everything is OK, click the Export button to let VikPea export clean, hyper-realistic high-resolution footage.
Sony Vegas Pro FAQs
To change video resolution in Vegas Pro, open Project Properties and select the resolution you want, such as 1920×1080 (Full HD) or 3840×2160 (4K UHD). After editing, go to Render As and choose an export template that matches your target resolution. Keep in mind that increasing resolution only enlarges the video frame; it does not automatically improve image quality or restore lost details in low-resolution footage.
Sony Vegas Pro provides advanced scaling and rendering options but is not primarily designed as a dedicated AI video upscaler. It can enlarge videos effectively, but specialized AI tools generally offer better detail restoration, denoising, and face enhancement capabilities.
Upscaling increases resolution but cannot recreate details that are missing from the original footage. If your source video is blurry, compressed, or low quality, enlarging it may simply make those imperfections more visible.
Final Verdict
Sony Vegas Pro allows you to upscale videos by increasing project and export resolution, making it useful for basic 1080p-to-4K workflows. However, traditional scaling can only enlarge existing pixels and cannot restore missing details.
If you want sharper visuals, cleaner footage, better face restoration, and true AI-powered enhancement, HitPaw VikPea offers a more advanced solution. Combining Sony Vegas Pro for editing with VikPea for enhancement can help you achieve professional-quality 4K and 8K results.
