How to Fix Blurry Videos in Camtasia: 8 Fixes

Part 1. Why Are Videos Blurry in Camtasia?

Blurriness in Camtasia rarely stems from a software glitch. Instead, it is usually caused by a mismatch in dimensions and resolution across three stages of your workflow:

• Recording Dimensions: The pixel size of the screen area you capture.
• Canvas Settings: The working resolution of your editing timeline.
• Export Dimensions: The final resolution of your produced MP4 file.

When these components do not match, Camtasia forces the pixels to stretch (upscale) or shrink (downscale). This distortion results in soft edges, blurry text, and a massive loss in overall sharpness. Additionally, automated performance features designed to keep the software running smoothly can temporarily lower your preview quality while editing.

Part 2. How to Fix Blurry Videos in Camtasia

Once you know what's causing the problem, you can improve your video quality with a few simple adjustments.

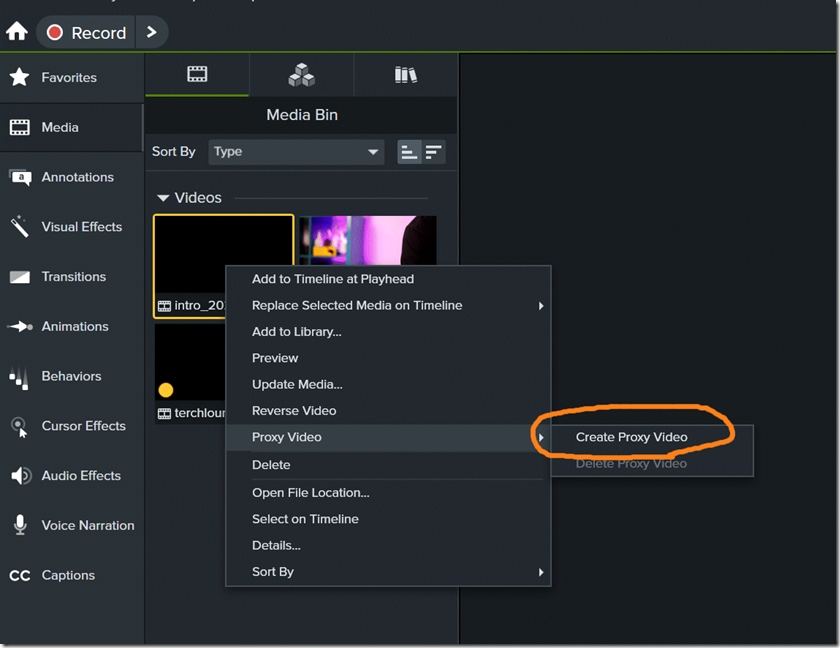

1. Fix the Canvas Preview

If your video looks blurry while you are editing but looks fine anywhere else, Camtasia's Proxy Media feature is active. To optimize processing speeds, Camtasia generates a lower-resolution "proxy" file for the timeline preview.

To restore crystal-clear preview quality:

• Look for a yellow dot on your media clip in the Media Bin.
• Right-click the blurry video clip inside the Media Bin.
• Hover over Proxy and select Delete Proxy Video.
• Pro Tip:To stop this from happening permanently, go to Edit > Preferences > Advanced tab, and uncheck Proxy videos.

2. Record at Your Screen's Native Resolution

Crisp videos start at the recording stage. Recording a cropped, custom region of your desktop forces Camtasia to scale the recording up during editing, creating instant pixelation.

Always select Full Screen in the Camtasia Recorder. Ensure your monitor is set to its native resolution (such as 1920×1080 for standard 1080p Full HD) before hitting the record button.

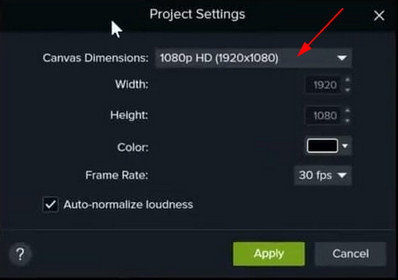

3. Match the Canvas Size

Your project canvas size must perfectly mirror your recording size. If you drop a 1080p recording onto a 720p canvas, the software will downsample the image, turning small text into a blurry mess.

To fix mismatched dimensions:

• Right-click the black border area surrounding your preview canvas.
• Select Project Settings... from the dropdown menu.
• Click the Canvas Dimensions dropdown and match it exactly to your source recording (e.g., 1080p HD).
• Click Apply.

4. Limit Digital Zoom

Camtasia's Zoom-n-Pan animations are excellent for drawing attention to specific interface details. However, stretching a video track past its original 100% scale to achieve a zoom effect will pixelate the image.

Limit your zoom scaling to a maximum of 120% to 130% for brief moments. If you need a hyper-focused view of text or icons, record that specific section at a lower monitor resolution natively beforehand.

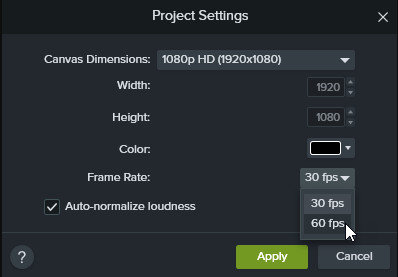

5. Record at 60fps for Smooth Motion

Fast-moving cursor movements, scrolling web pages, and complex screen transitions look blurry if recorded at a standard 30 frames per second (fps).

Open the Camtasia Recorder settings before you start capturing and change the frame rate from 30fps to 60fps. High-frame-rate recordings preserve sharp edges during rapid motion, providing a sleek, premium viewing experience.

6. Set Scale to 100%

Never grab the corner handles of a screen recording on the canvas to stretch it out manually. This stretches the original file pixels unevenly.

Always select your video track on the timeline, navigate to the properties panel on the right, and ensure the Scale slider is set precisely to 100%. This forces a clean, pixel-for-pixel rendering of your original screen clip.

7. Use Higher Bitrate for Sharper Export

Bitrate dictates how much data is processed per second of your video. A low bitrate creates pixel blocks, artifacts, and fuzzy text, especially around fine graphic elements.

When configuring your export, switch the encoding settings from standard presets to a custom level. Push the quality slider to at least 70-80% or explicitly set a higher video bitrate to ensure that complex on-screen changes are preserved with pristine accuracy.

8. Change Custom Export Settings

Using the default automated web export presets can over-compress your project files to save space, creating digital artifacts and blurry output.

To bypass aggressive compression:

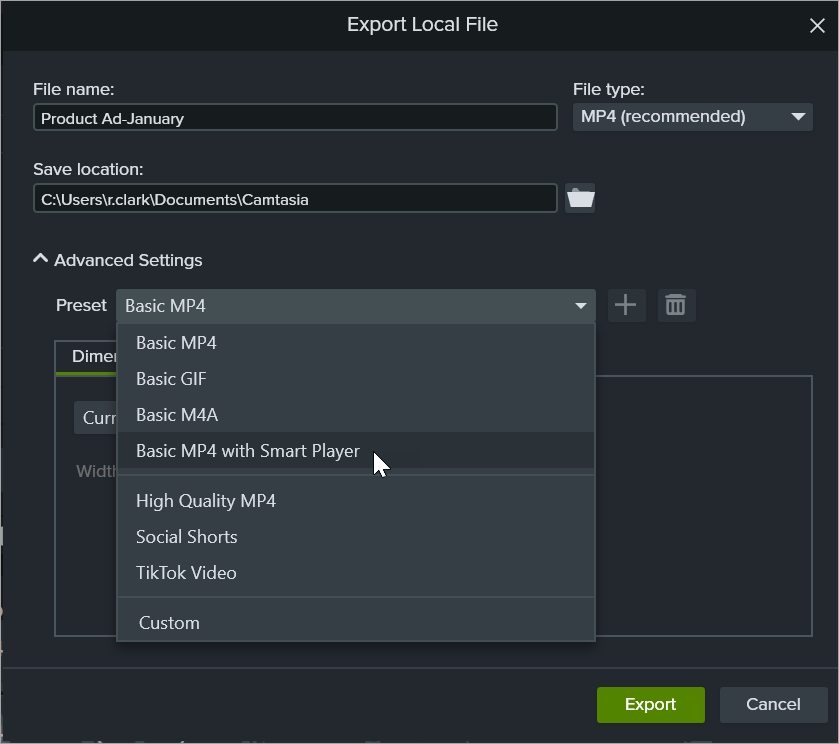

• Click Export in the top-right corner and choose Local File.
• Select Custom production settings rather than a preset.
• Choose MP4 (H.264) as your format.
• Align the final export resolution explicitly to your original canvas dimensions (e.g., 1920×1080 for standard HD) so no scaling happens during production.

Part 3. Best Export Settings to Avoid Quality Loss

To guarantee your finalized video retains its crisp editing quality, use these exact custom export specifications:

• Format: MP4 (Smart Player / H.264)
• Frame Rate: Match your source recording (30fps or 60fps)
• Dimensions: Current Project Dimensions (Do not change or scale down)
• Encoding Mode: Quality (Set between 70% and 75% for an optimal balance; going to 100% drastically increases file sizes without noticeable visual gains)
• Audio Bitrate: 128kbps or higher

Part 4. Already Exported a Blurry Video? Enhance It with AI

Even after meticulously tweaking your recording configuration, aligning timeline scales, and boosting production bitrates, you might still find your final Camtasia output looking surprisingly soft or pixelated.

The truth is, standard video editors have technical boundaries they simply cannot cross. When handling complex screen captures, Camtasia faces several built-in limitations:

• Restore fine details that were never captured.
• Remove compression artifacts from exported videos.
• Upscale 720p or 1080p footage while maintaining sharpness.
• Reduce motion blur, image noise, or other recording imperfections.

What is HitPaw VikPea?

HitPaw VikPea is a professional-grade, AI-driven video enhancement software. It uses advanced deep-learning algorithms trained specifically to reconstruct lost details, sharpen blurry font outlines, and remove heavy compression noise from desktop or screen-recorded videos.

Key Features & Highlights:

• AI-Powered Upscaling: Intelligently upscales low-resolution or blurry 1080p footage up to crisp 4K or 8K resolution.
• Specialized AI Models: Features a dedicated Animation Model and Portrait/General Denoise Model for different video
• Instant Unblur & Repair: Effortlessly removes digital artifacts and blurs caused by bad Camtasia compression settings.
• Batch Processing: Enhances multiple blurry video files simultaneously to save hours of manual correction work.

How to Enhance a Camtasia Video with HitPaw VikPea:

• Step 1. Launch & Import:Open HitPaw VikPea on your computer and drag-and-drop your blurry exported Camtasia MP4 file into the Video Enhancer workspace.



• Step 2. Select AI Model:Choose the AI model that best fits your video type (e.g., the Denoise Model works exceptionally well for sharpening blurry tutorial text and interface UI elements).



• Step 3. Choose Resolution:Set your output resolution to 1080p or upscale it to 4K to reconstruct missing pixels.



• Step 4. Preview & Export:Click Preview to see the side-by-side quality transformation. Once satisfied, click Export to save your newly sharpened video.



Part 5. FAQs

Conclusion

Fixing blurry videos in Camtasia comes down to the 1:1:1 Rule: matching your recording size, canvas size, and export size. By removing preview proxies, keeping your layout scale at exactly 100%, and boosting your export bitrate, you can completely eliminate fuzziness from your production workflow.

And if you ever find yourself stuck with an already compressed, uneditable blurry file, tools like HitPaw VikPea offer a powerful, AI-driven safety net to instantly sharpen your footage back to perfection. Try these settings on your next video and watch your content clarity skyrocket!
